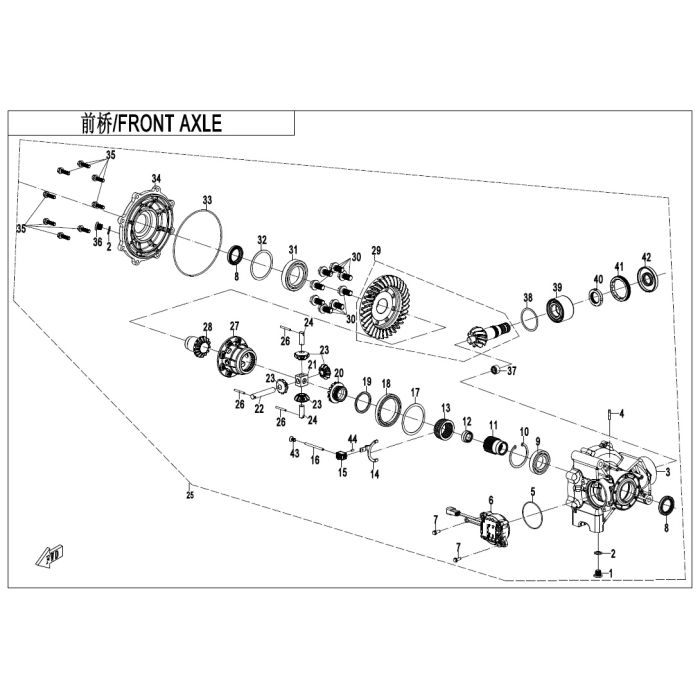

| 1 Magnetic drain bolt m14x1.25x12 0180-332100 Se vend en quantité de 6 54,30 $ |
| 2 Washer 14 0180-011006 Se vend en quantité de 6 17,94 $ |
| 3 Front gear case Q841-310001-10000 260,01 $ |
| 4 Breather connector 0180-311004 3,67 $ |
| 5 O'ring 67.5 x 2 Q830-310012-10000 6,06 $ |
| 6 Electrical front gear case motor 9AWV-152900-8000 314,18 $ |
| 8 Oil seal 35x50x7 0800-062204 18,10 $ |
| 9 Bearing 6007 30400-03502 30,23 $ |
| 10 Retainer 62 30800-06200 Se vend en quantité de 6 17,94 $ |
| 11 Spline sleeve Q841-310008 33,30 $ |
| 12 Guide pin Q841-310007 12,09 $ |
| 13 Spline bushing Q841-310005 28,55 $ |
| 14 Fork Q841-310006 11,01 $ |
| 15 Block assy. Q890-310010 58,06 $ |
| 16 Pin , shaft Q830-310003 18,35 $ |
| 17.1 Adjusting washer 84.5x75 JA81-310001-1000-00100 6,05 $ |
| 17.2 Adjusting washer 84.5x75 JA81-310001-1000-00200 6,05 $ |
| 17.3 Adjusting washer 84.5x75 JA81-310001-1000-00300 4,53 $ |
| 17.4 Adjusting washer 84.5x75 JA81-310001-1000-00400 4,53 $ |
| 17.5 Adjusting washer 84.5x75 JA81-310001-1000-00500 4,53 $ |
| 17.6 Adjusting washer 84.5x75 JA81-310001-1000-00600 6,05 $ |
| 18 Bearing 30400-06500 48,53 $ |
| 19 Thrust washer Q841-313003 10,58 $ |
| 20 Lh shaft gear Q841-313005-10000 110,99 $ |
| 21 Cross sleeve Q840-313008 29,50 $ |
| 22 Planet gear shaft Q840-313007-10000 17,98 $ |
| 23 Planet gear Q840-313006-10000 43,48 $ |
| 24 Short planet gear shaft Q840-313005-10000 15,42 $ |
| 25 Front gear case assy Q841-310000-00001 802,90 $ |
| 26 Cylinder pin 30906-0403500 1,51 $ |
| 27 Front differential case Q841-313004-10000 143,88 $ |
| 28 Rh cv shaft gear Q841-313001-10000 143,88 $ |
| 29 Bevel gear assy, front gear case SH-Q841-3100A0 294,61 $ |
| 31 Bearing 30400-05081 37,78 $ |
| 32.1 Shim 79.5x68x0.10 Q830-310015-00100 Se vend en quantité de 6 27,12 $ |
| 32.2 Shim 79.5x68x0.20 Q830-310015-00200 Se vend en quantité de 6 27,12 $ |
| 32.3 Shim 79.5x68x0.30 Q830-310015-00300 Se vend en quantité de 6 27,12 $ |
| 32.4 Shim 79.5x68x0.40 Q830-310015-00400 Se vend en quantité de 6 27,12 $ |
| 32.5 Shim 79.5x68x0.50 Q830-310015-00500 Se vend en quantité de 6 27,12 $ |
| 32.6 Shim 79.5x68x0.60 Q830-310015-00600 Se vend en quantité de 6 27,12 $ |
| 33 O-ring 151x3 0180-334002 Se vend en quantité de 2 5,98 $ |
| 34 Front gear case cover Q841-310004-10000 86,33 $ |
| 37 Needle bearing 30403-01500 21,16 $ |
| 38.1 Adjusting washer 61.7×54.7@t=0.1 Q840-310007-00100 3,02 $ |
| 38.2 Adjusting washer 61.7×54.7@t=0.3 Q840-310007-00200 3,02 $ |
| 38.3 Adjusting washer 61.7×54.7@t=0.5 Q840-310007-00300 3,02 $ |
| 39 Wheel hub bearing 30411-03082 56,14 $ |
| 40 Small nut 30235-303050 15,11 $ |
| 41 Lock screw ring Q840-310008 30,23 $ |
| 42 Oil seal Q841-310002 24,18 $ |
| 43 Cross recessed countersunk head screw m6x10 30107-060010410 1,51 $ |
| 44 Pin shaft 30913-0300550 1,54 $ |
