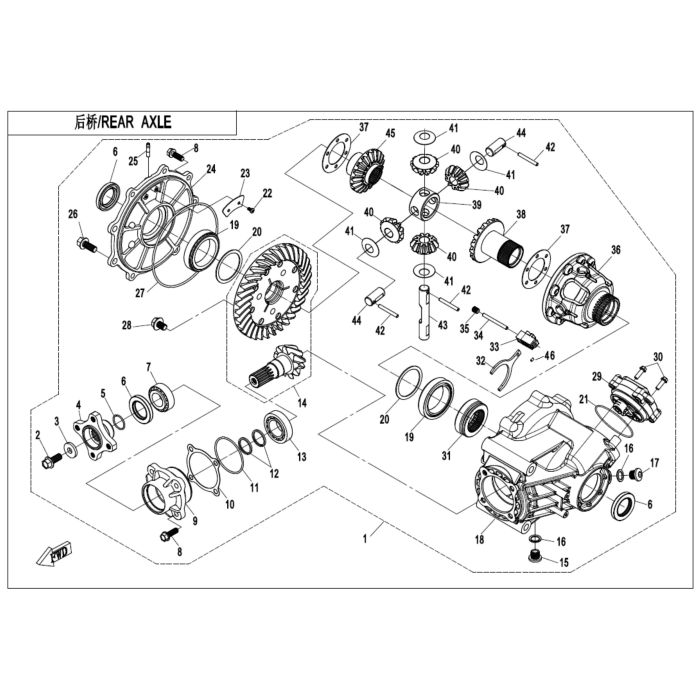

| 1 Rear gear case assy Q870-330000-00001 2 033,99 $ |
| 2 Bolt m12×1.25×25 Q860-331002 Se vend en quantité de 6 17,94 $ |
| 3 Washer 13×27.5×4 0180-331008-00001 Se vend en quantité de 6 27,12 $ |
| 4 Coupler Q850-331002 70,91 $ |
| 5 O-ring 25x2 0800-062205 Se vend en quantité de 2 9,04 $ |
| 6 Oil seal 35x50x7 0800-062204 18,10 $ |
| 7 Bearing 25x47x17 33005 30409-02500 40,91 $ |
| 8 Bolt, m8x1.25x28 0110-060011-0010 Se vend en quantité de 6 24,42 $ |
| 9 Bearing seat, front axle Q830-311002-00001 51,40 $ |
| 10.1 Shim 0.20 Q830-310023-00100 Se vend en quantité de 6 27,12 $ |
| 10.2 Shim 0.30 Q830-310023-00200 Se vend en quantité de 6 27,12 $ |
| 11 O'ring 55 x 2.5 Q830-310006-10000 7,60 $ |
| 12.1 Adjusting washer 32×25.4 t=2.10 Q830-311003-00001-00100 3,02 $ |
| 12.1 Adjusting washer 32×25.4 t=2.60 Q830-311003-00001-01000 3,02 $ |
| 12.11 Adjusting washer 32×25.4 t=2.70 Q830-311003-00001-01100 3,02 $ |
| 12.12 Adjusting washer 32×25.4 t=2.80 Q830-311003-00001-01200 3,02 $ |
| 12.13 Adjusting washer 32×25.4 t=2.90 Q830-311003-00001-01300 3,02 $ |
| 12.14 Adjusting washer 32×25.4 t=3.00 Q830-311003-00001-01400 3,02 $ |
| 12.2 Adjusting washer 32×25.4 t=2.20 Q830-311003-00001-00200 3,02 $ |
| 12.3 Adjusting washer 32×25.4 t=2.30 Q830-311003-00001-00300 3,02 $ |
| 12.4 Adjusting washer 32×25.4 t=2.40 Q830-311003-00001-00400 3,02 $ |
| 12.5 Shim 32x25.4x2.42 Q830-311003-00001-00500 Se vend en quantité de 6 17,94 $ |
| 12.6 Adjusting washer 32×25.4 t=2.44 Q830-311003-00001-00600 3,02 $ |
| 12.7 Shim 32x25.4x2.46 Q830-311003-00001-00700 Se vend en quantité de 6 17,94 $ |
| 12.8 Adjusting washer 32×25.4 t=2.48 Q830-311003-00001-00800 3,02 $ |
| 12.9 Adjusting washer 32×25.4 t=2.50 Q830-311003-00001-00900 3,02 $ |
| 13 Bearing 30×55×17 32006 30409-03000 36,18 $ |
| 14 Rear gear case bevel gear assy Q850-3300A0-00003 230,50 $ |
| 15 Magnetic drain bolt m14x1.25x12 0180-332100 Se vend en quantité de 6 54,30 $ |
| 16 Washer 14 0180-011006 Se vend en quantité de 6 17,94 $ |
| 17 Bolt m14x1.25x12 0180-021008-00001 Se vend en quantité de 2 9,04 $ |
| 18 Rear gear case Q870-330001 210,04 $ |
| 19 Bearing 30409-05000 118,01 $ |
| 20.1 Shim 61x50.5x0.10 Q820-330003-00100 2,99 $ |
| 20.2 Shim 61x50.5x0.30 Q820-330003-00200 2,99 $ |
| 20.3 Shim 61x50.5x0.50 Q820-330003-00300 2,99 $ |
| 20.4 Shim 61x50.5x0.90 Q820-330003-00400 4,52 $ |
| 20.5 Shim 61x50.5x0.92 Q820-330003-00500 4,52 $ |
| 20.6 Shim 61x50.5x0.94 Q820-330003-00600 4,52 $ |
| 20.7 Shim 61x50.5x0.96 Q820-330003-00700 4,52 $ |
| 20.8 Shim 61x50.5x0.98 Q820-330003-00800 4,52 $ |
| 20.9 Shim 61x50.5x1.00 Q820-330003-00900 4,52 $ |
| 21 O'ring 67.5 x 2 Q830-310012-10000 6,06 $ |
| 22 Cross screw gb818 m4x8 30105-040008410 Se vend en quantité de 6 27,12 $ |
| 23 Oil guard Q830-310022 7,34 $ |
| 25 Joint, breather pipe 0180-311004-0020 2,99 $ |
| 26 Bolt, m10x1.25x25 0180-330004-0010 Se vend en quantité de 6 17,94 $ |
| 27 O-ring 151x3 0180-334002 Se vend en quantité de 2 5,98 $ |
| 28 Bolt, m10x1.25x18 0180-313100-0010 Se vend en quantité de 6 17,94 $ |
| 29 Motor assy, front gear case Q890-314000-10000 174,71 $ |
| 31 Spline bushing Q870-330003 39,94 $ |
| 32 Fork Q870-330002 18,10 $ |
| 33 Block assy. Q890-310010 58,06 $ |
| 34 Pin shaft Q870-330004 2,99 $ |
| 36 Differential housing Q870-333101 142,47 $ |
| 37 Washer, cv shaft gear Q870-333108 4,52 $ |
| 38 Lh cv shaft gear Q870-333103 133,15 $ |
| 39 Cross bushing Q870-333102 42,35 $ |
| 40 Planet gear Q870-333105 39,28 $ |
| 41 Spherical washer Q870-333109 2,99 $ |
| 42 Pin 30906-0504000 1,54 $ |
| 43 Planet gear shaft Q870-333106 30,43 $ |
| 44 Short planet gear shaft Q870-333107 19,64 $ |
| 45 Rh cv shaft gear Q870-333104 98,97 $ |
| 46 Pin shaft 30913-0300550 1,54 $ |
