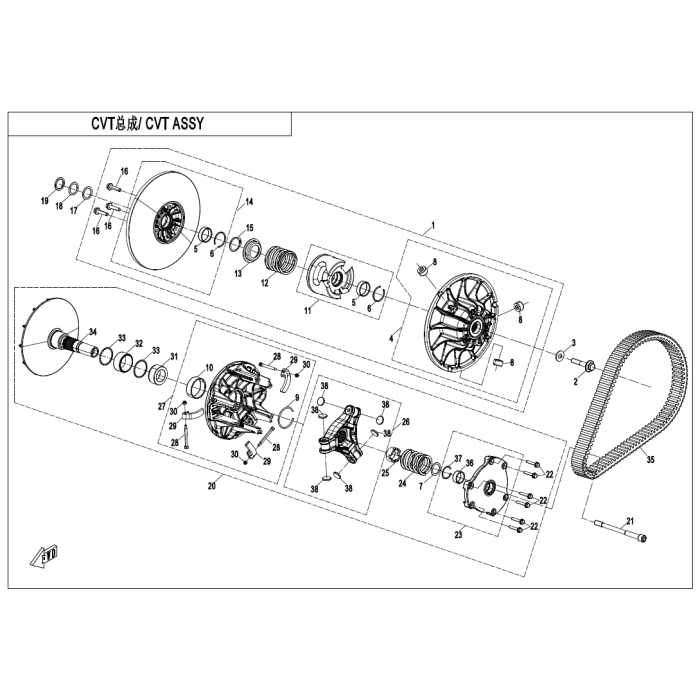

| 1 Driven pulley assy 0JWV-052000-3002 517,43 $ | |
| 4 Driven fixed pulley assy 0JWV-052100-3002 320,31 $ | |
| 5 Bearing 0JWV-052202-3000 43,80 $ | |
| 6 Circlip 0JWV-052203-3000 2,99 $ | |
| 7 Drive pulley washer 0JWV-051008-3200 4,52 $ | |
| 8 Driven fixed pulley roller 0JWV-052003-3001 50,43 $ | |
| 9 Circlip 0JWV-051103-3000 2,99 $ | |
| 10 Bearing 0JWV-051102-3000 87,52 $ | |
| 11 Driven pulley cam assy 0JWV-052300-3002 130,82 $ | |
| 12 Driven pulley spring 0JWV-052001-3001 28,55 $ | |
| 13 Driven pulley spring seat 0JWV-052002-3000 9,05 $ | |
| 14 Driven slider assy 0JWV-052200-3001 136,27 $ | |
| 15 Circlip for shaft 30801-03505 2,99 $ | |
| 16 Bolt 30023-100045160 9,05 $ | |
| 17 Driven pulley washer 1(2.0mm) 0JWV-050002-3000 4,52 $ | |
| 18 Driven pulley washer 2(2.6mm) 0JWV-050003-3000 4,52 $ | |
| 19 Driven pulley washer 4(1.5mm) 0JWV-050005-3000 4,52 $ | |
| 20 Drive pulley assy 0JWV-051000-3202 592,52 $ | |
| 22 Bolt, m6x35 30006-060035810 Se vend en quantité de 6 9,24 $ | Inventaire à venir |
| 23 Drive slider position disc assy 0JWV-051300-3001 167,37 $ | |
| 23 Drive sliding pulley position disc assy 0JWV-051300-3000 120,24 $ | |
| 24 Spring, drive pulley 0JWV-051002-3000 28,55 $ | |
| 25 Drive pulley nut 0JWV-051001-3001 21,18 $ | |
| 25 Nut, drive pulley 0JWV-051001-3000 27,24 $ | |
| 26 Thrust disc assy 0JWV-051600-3001 258,85 $ | |
| 26 Thrust disc 0JWV-051600-3000 477,88 $ | |
| 27 Drive slider assy 0JWV-051100-3202 274,92 $ | |
| 27 Drive sliding pulley assy 0JWV-051100-3201 278,77 $ | |
| 28 Inner hex bolt 0JWV-051105-3000 12,13 $ | |
| 29 Clutch shoe assy 0JWV-051110-3201 35,21 $ | |
| 30 Nut 30220-050810 1,54 $ | |
| 31 Drive pulley bushing 0JWV-051006-3000 46,25 $ | |
| 32 Bearing assy, drive pulley 0JWV-051400-3000 97,04 $ | |
| 33 Drive pulley bearing gasket 0JWV-051007-3001 2,99 $ | |
| 33 Drive pulley bearing washer 0JWV-051007-3000 2,99 $ | |
| 34 Drive fixed pulley assy 0JWV-051200-3001 497,29 $ | |
| 34 Drive fixed pulley assy 0JWV-051200-3000 146,08 $ | |
| 35 Cvt belt 0JWV-055000-3000 399,01 $ | |
| 36 Bearing 0JWV-051302-3000 43,80 $ | |
| 37 Circlip 30805-03205 2,99 $ | |
| 38 Thrust disc slider 0JWV-051601-3000 42,85 $ | |
