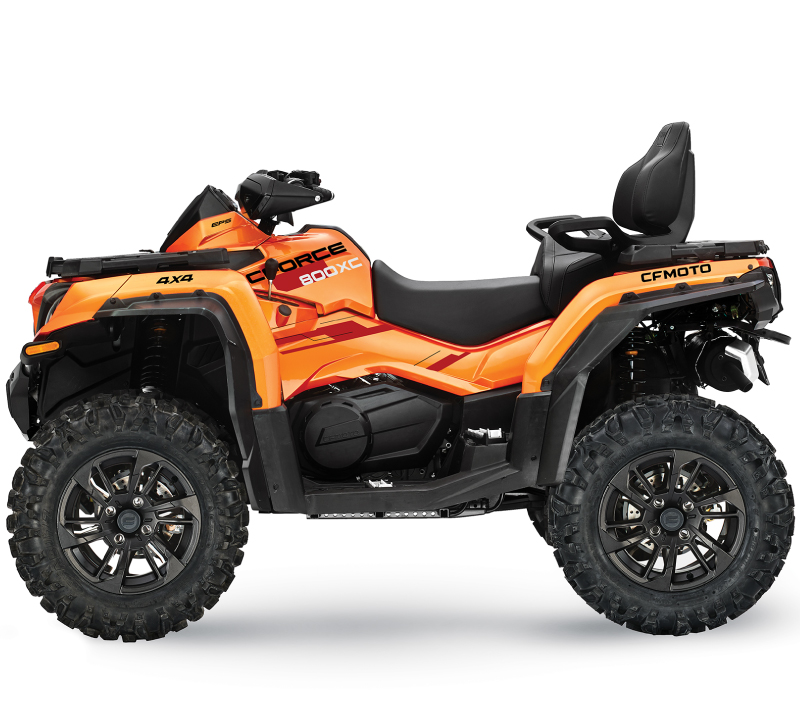

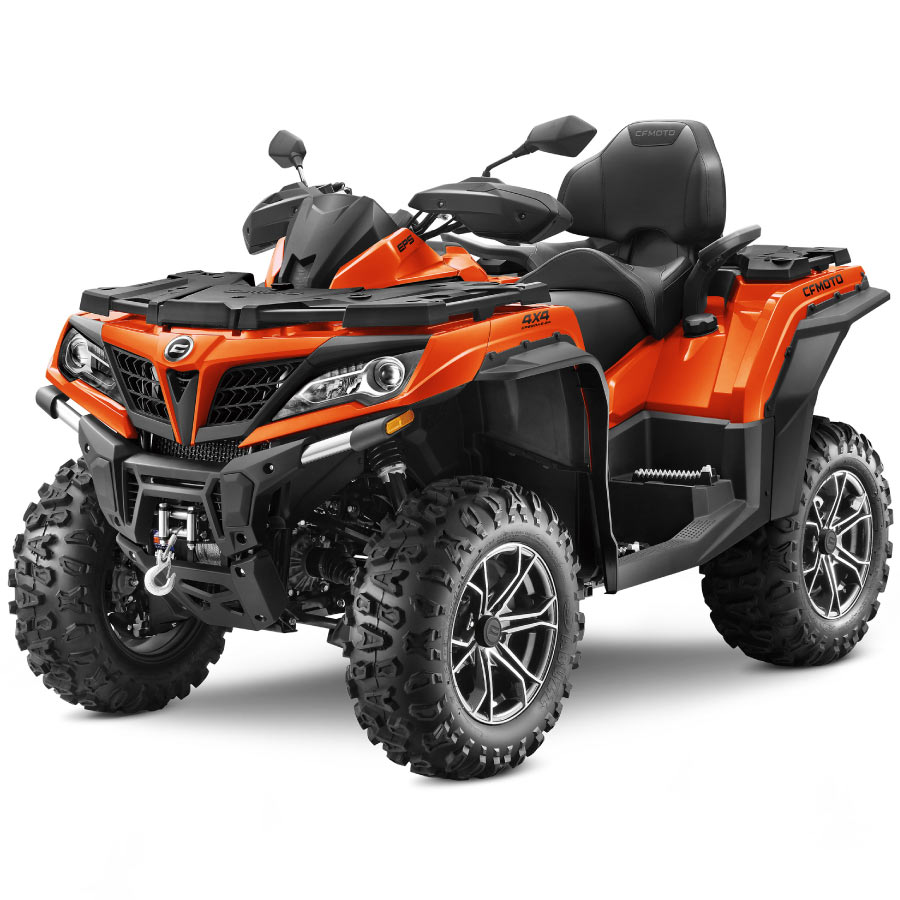

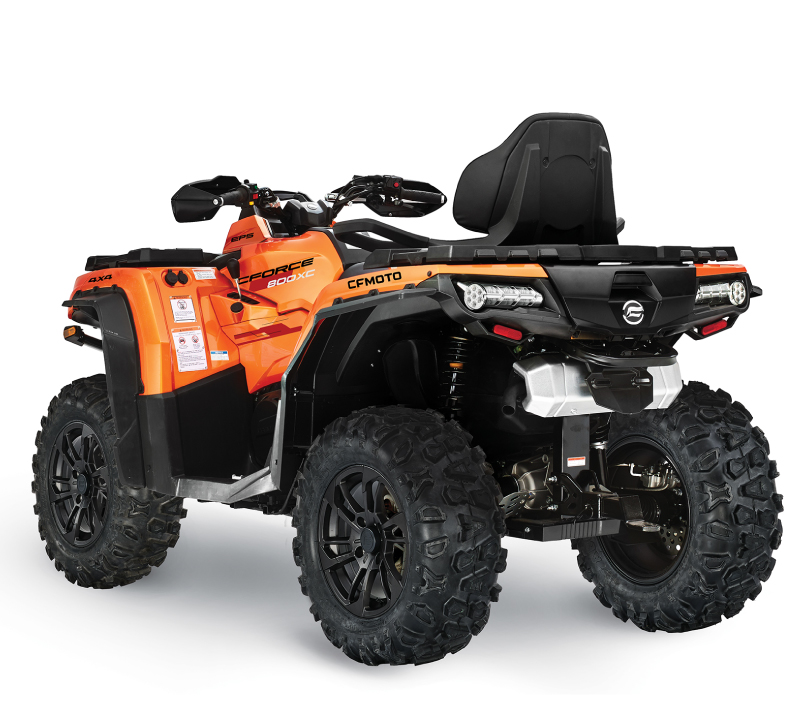

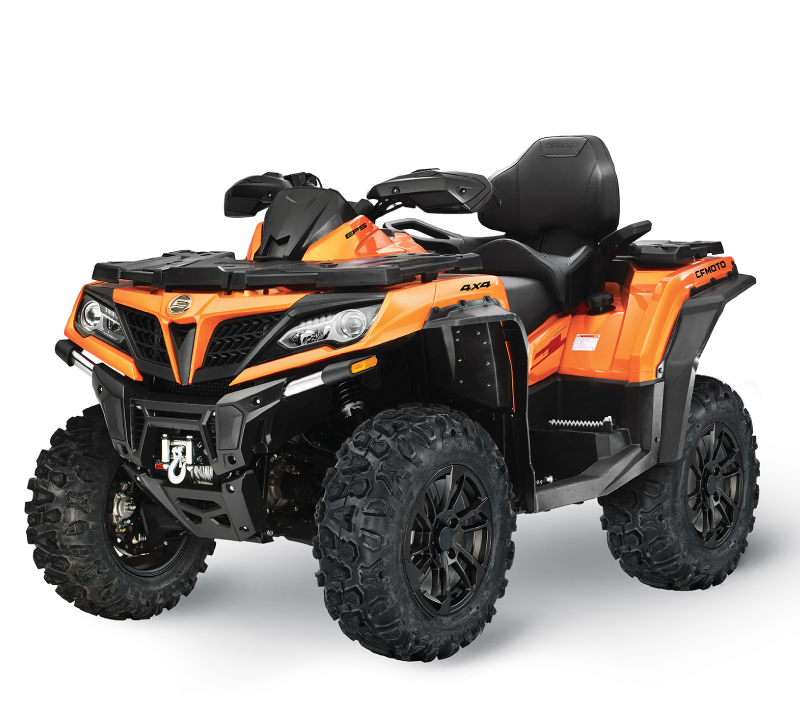

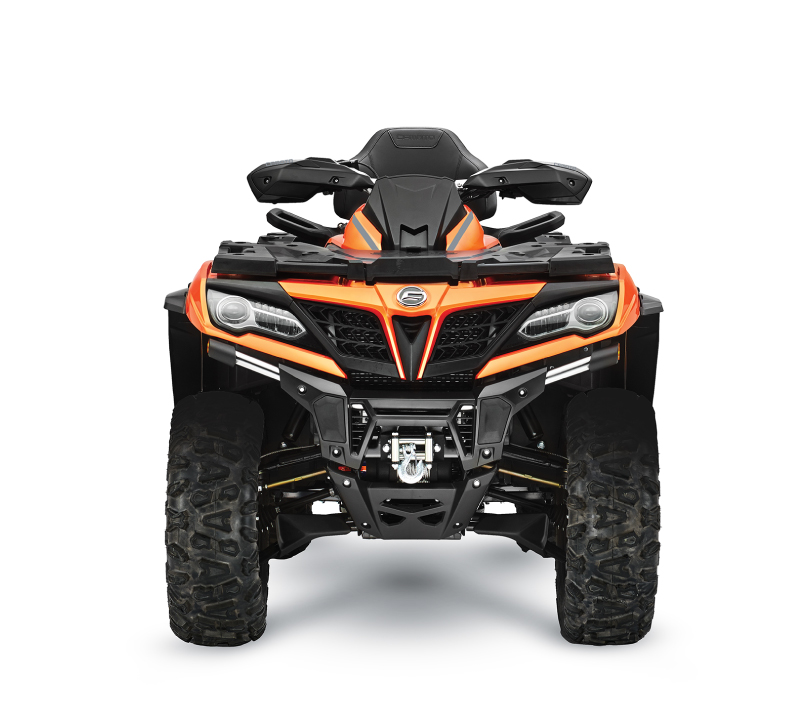

CFORCE 800 XC 2024

Photos are for illustrative purposes only.
CFORCE 800 XC 2024
5-year limited warranty

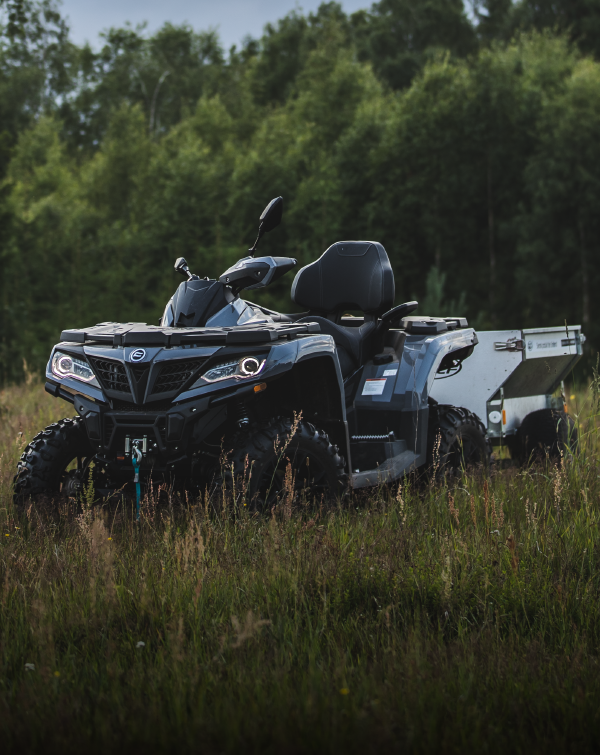

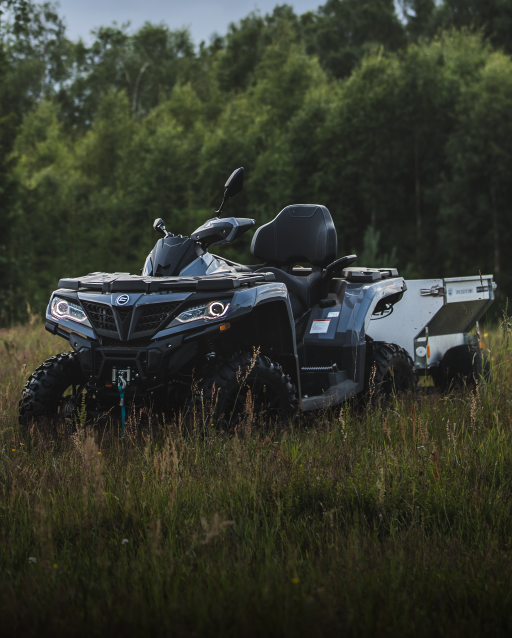

Outpower and outperform with the CFORCE 800 XC, the leading machine among ATVs. With unmatched aesthetics, functionality, and value, it leaves the competition in the dust. Packed with standard features like a 30L fuel tank, winch, rims, hand protectors and more, the CFORCE 800 XC comes fully equipped for your off-road adventures.

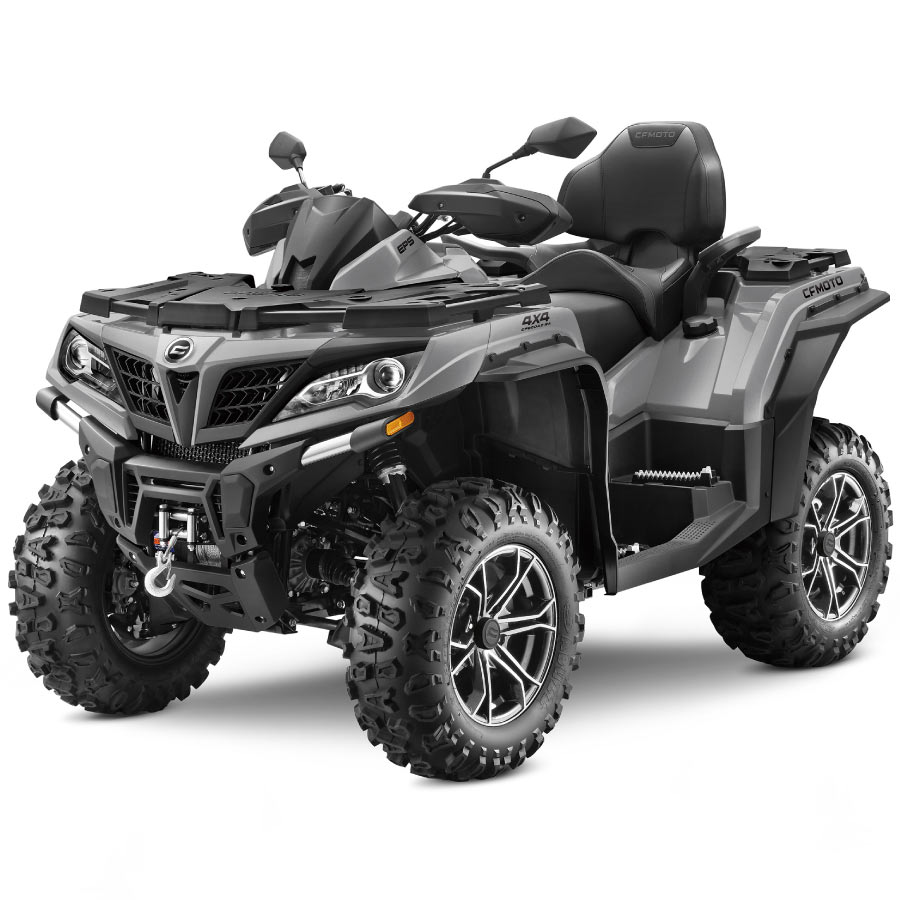

Ghost Grey

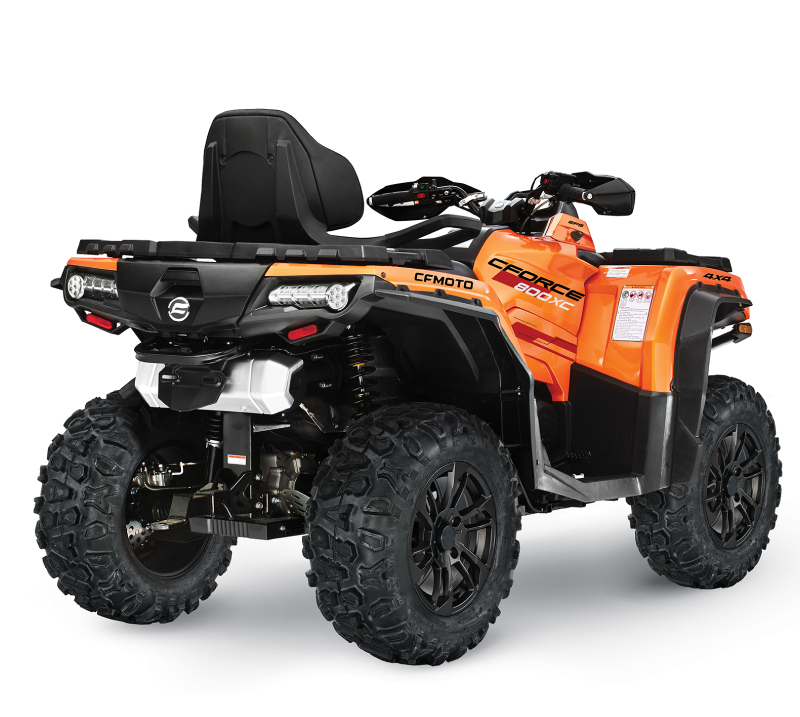

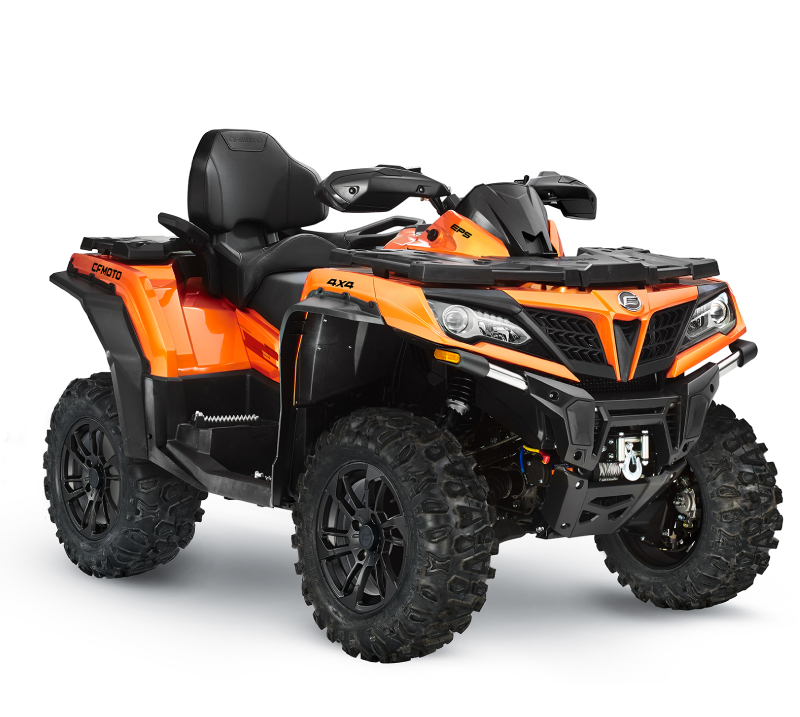

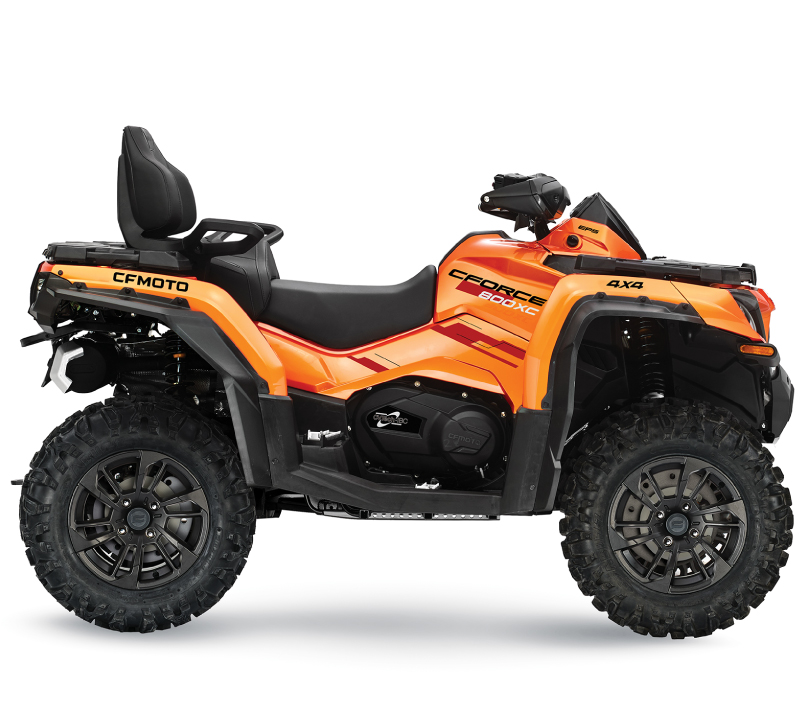

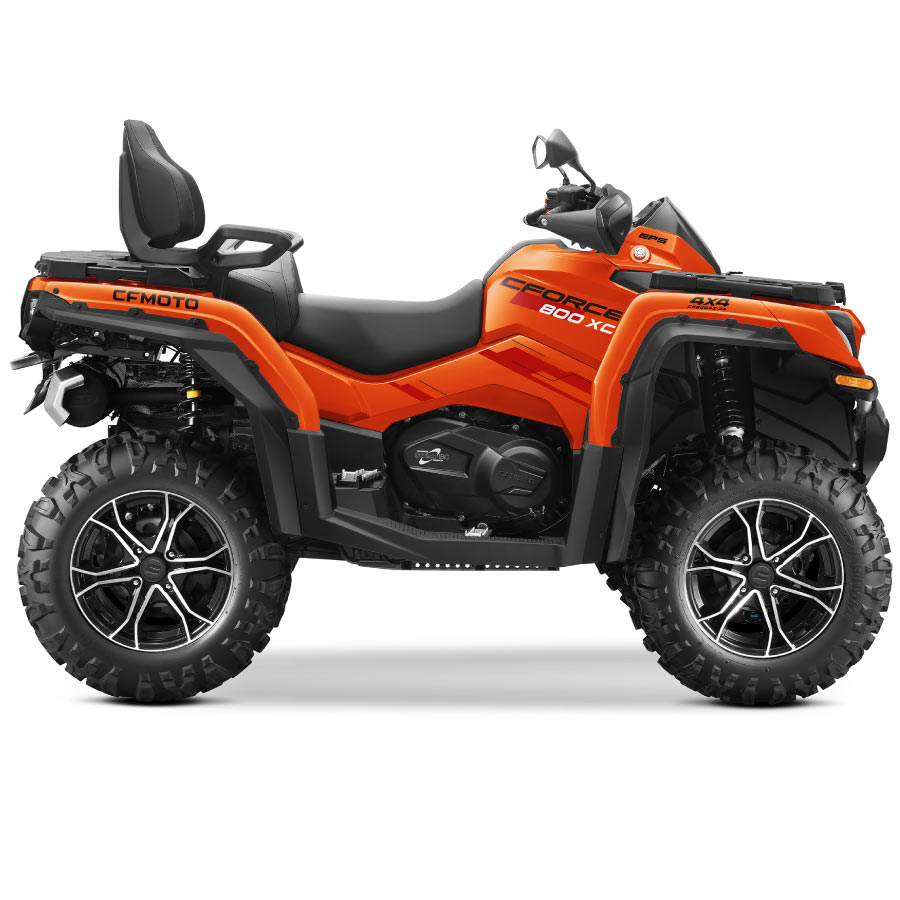

Lava Orange

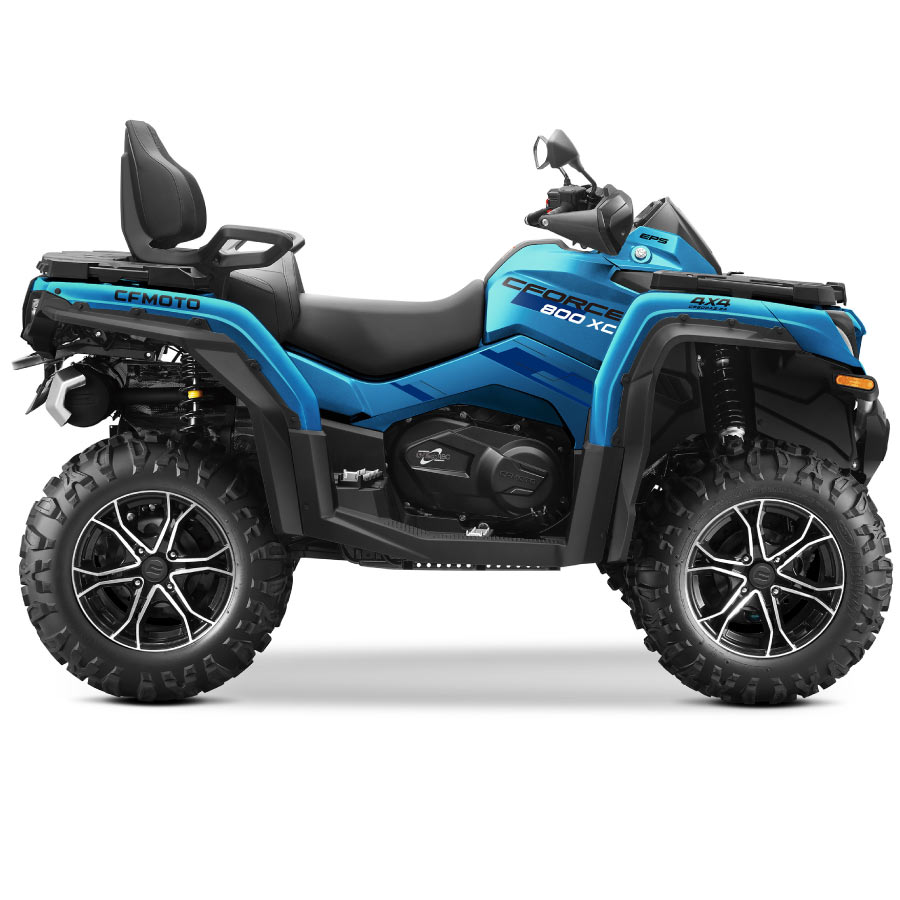

Royal Blue

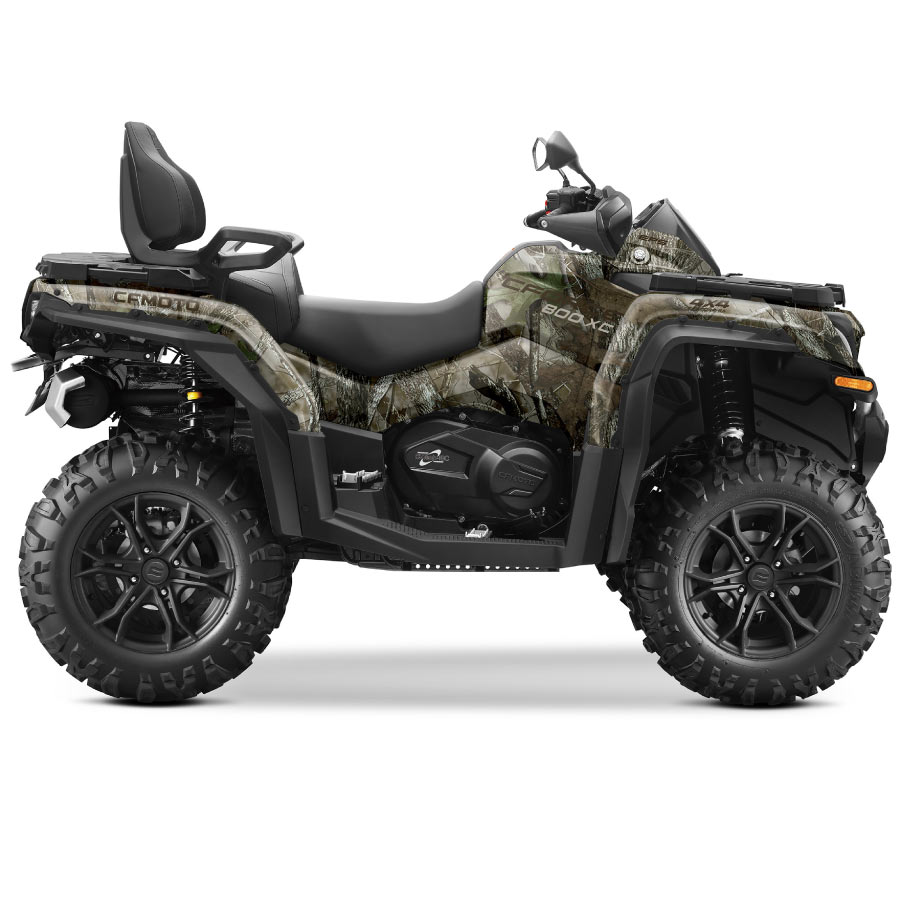

True Timber Camo
Starting at $15,549*
The price includes the MRSP $14,299, a $250 commodity surcharge, $500 freight, and a $500 preparation fee.
*The price indicated does not include registration fees, taxes, the cost of accessories and their installation. Preparation fee may vary per dealer. Photos for illustrative purposes only, accessories not included. Specifications can change.

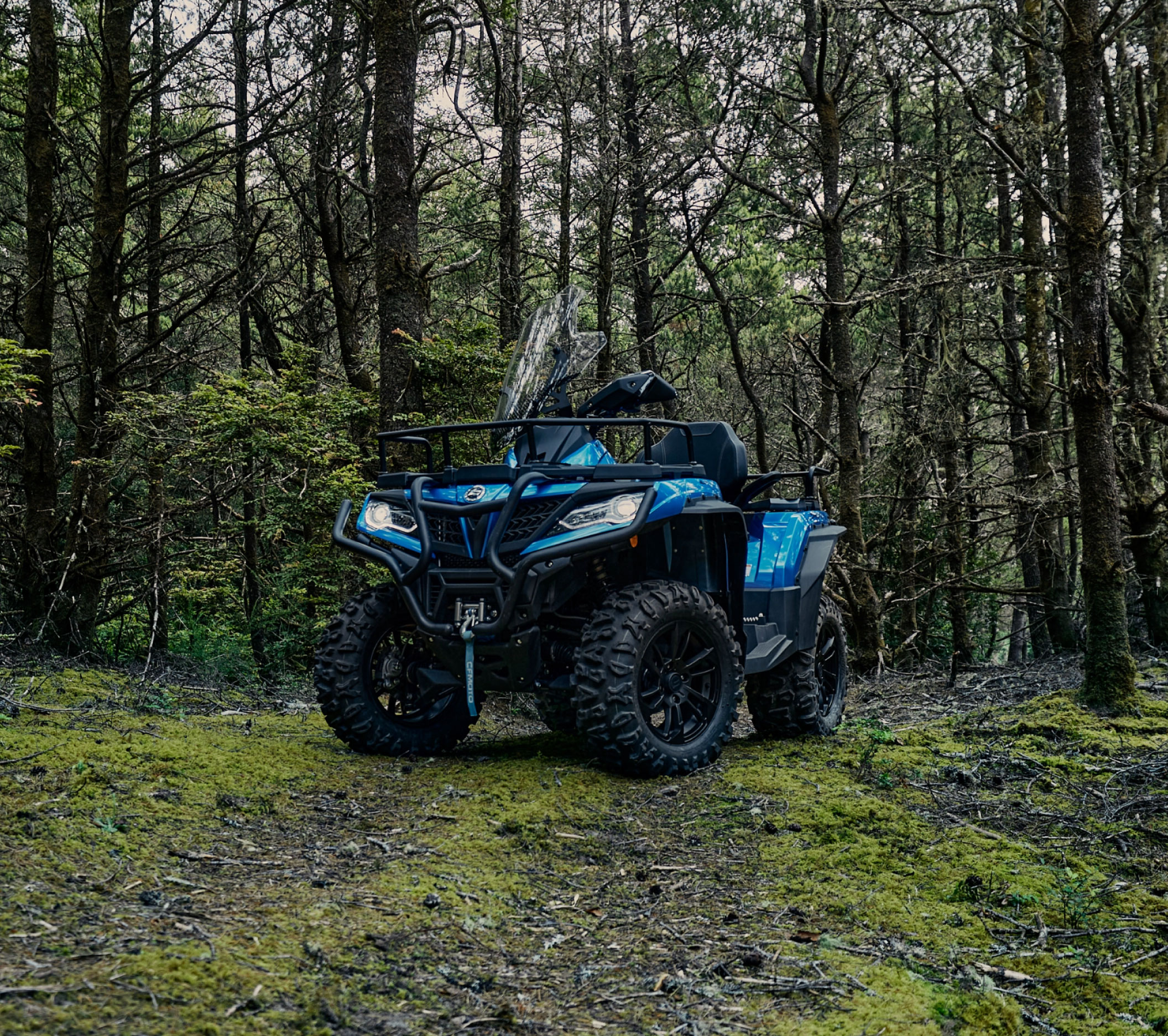

TOP FEATURES

suspension_gaz

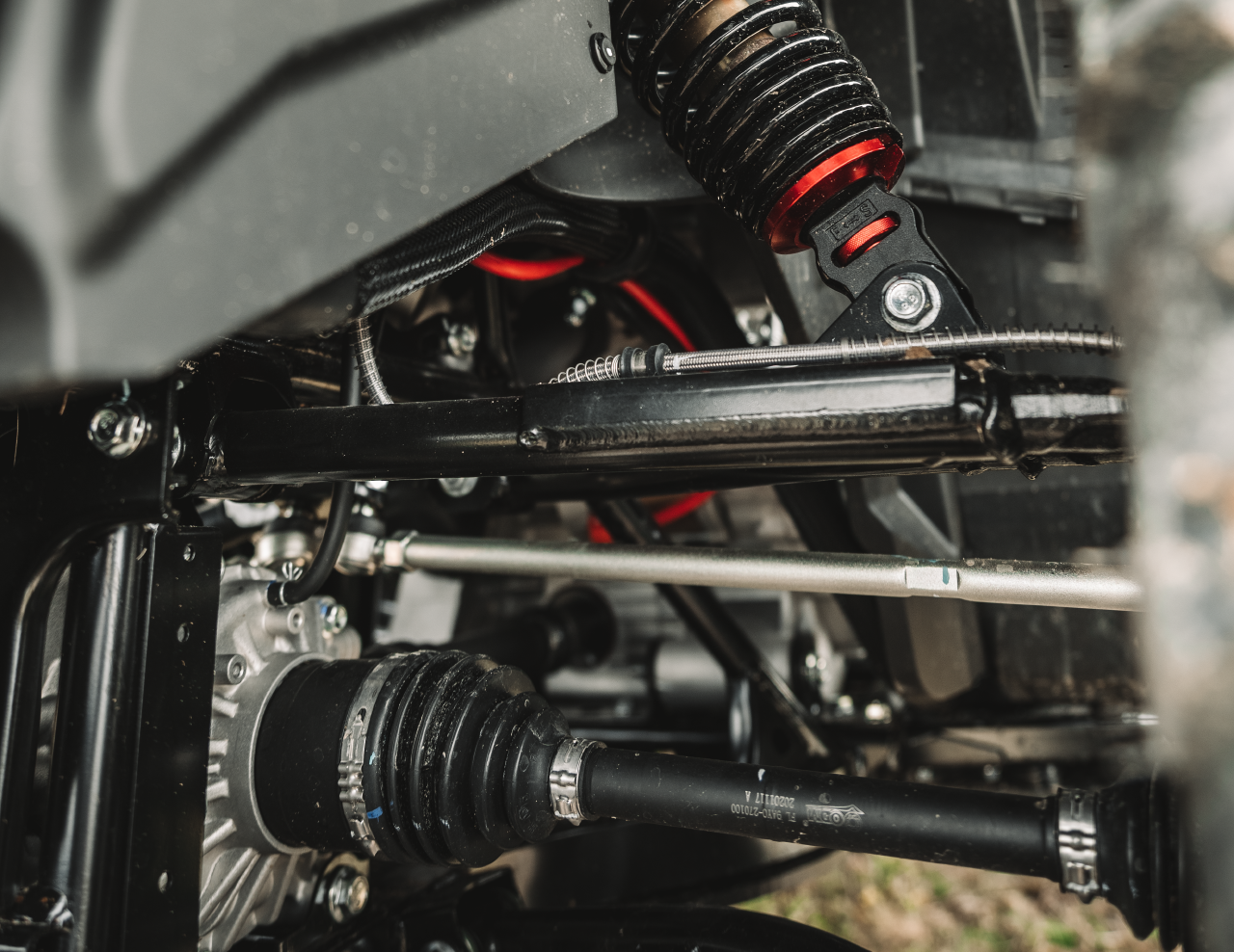

Hydraulic Shock Absorber With 5 Spring Preload Adjustment
direction_assistee_electrique
Electric Power Steering
miroirs_leteraux
Lateral Mirrors
prise_12V
12V Plug
ambrayage_cvtech
CVTech Clutch System
5 years warranty
5-year warranty

  • Fuel injected 800cc engine
  • Continuously Variable Transmission of CVTech- IBC
  • Electric Power Steering (EPS)
  • For the comfort of the passenger; backrest, footrest and handles

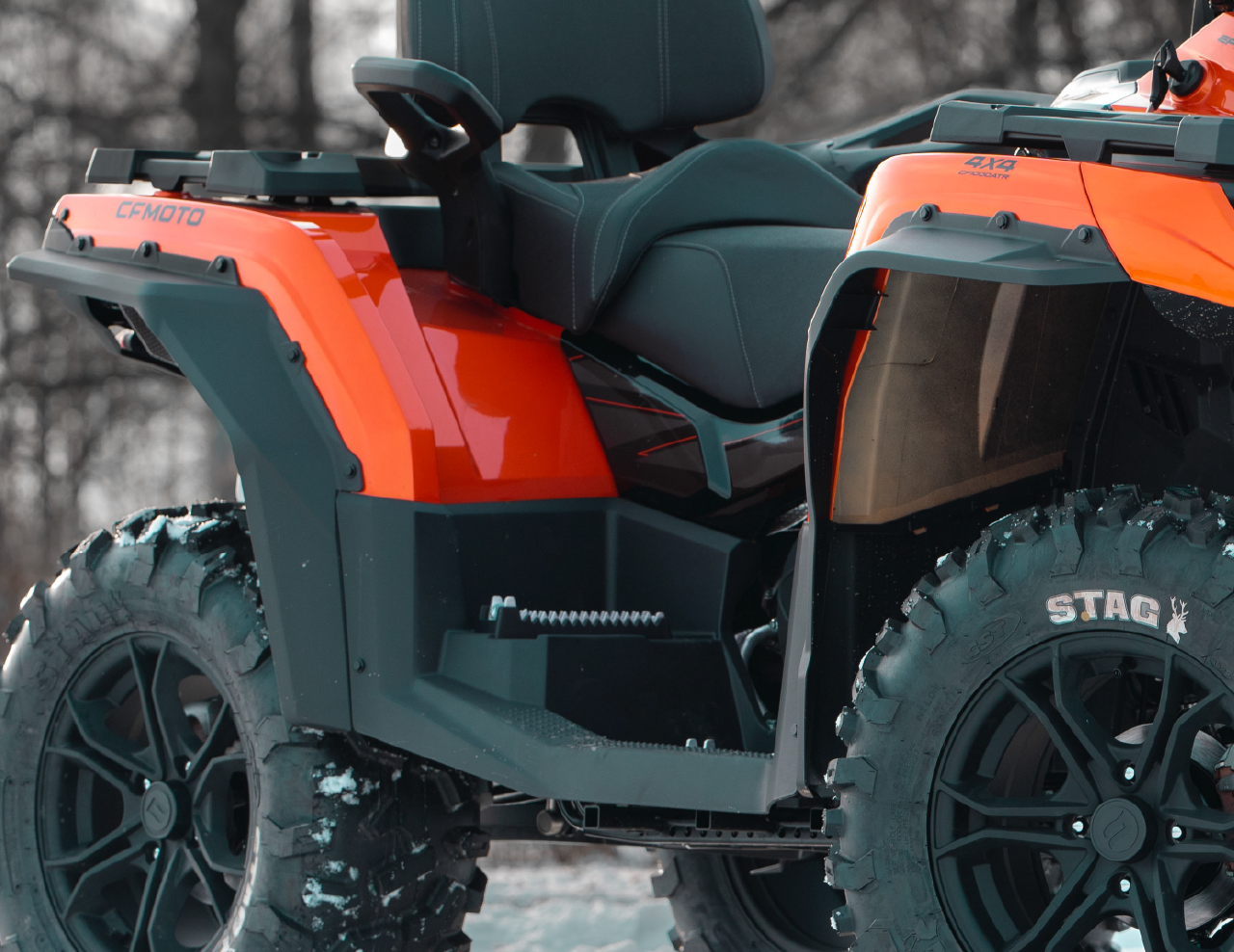

  • Hand protectors and mirrors included

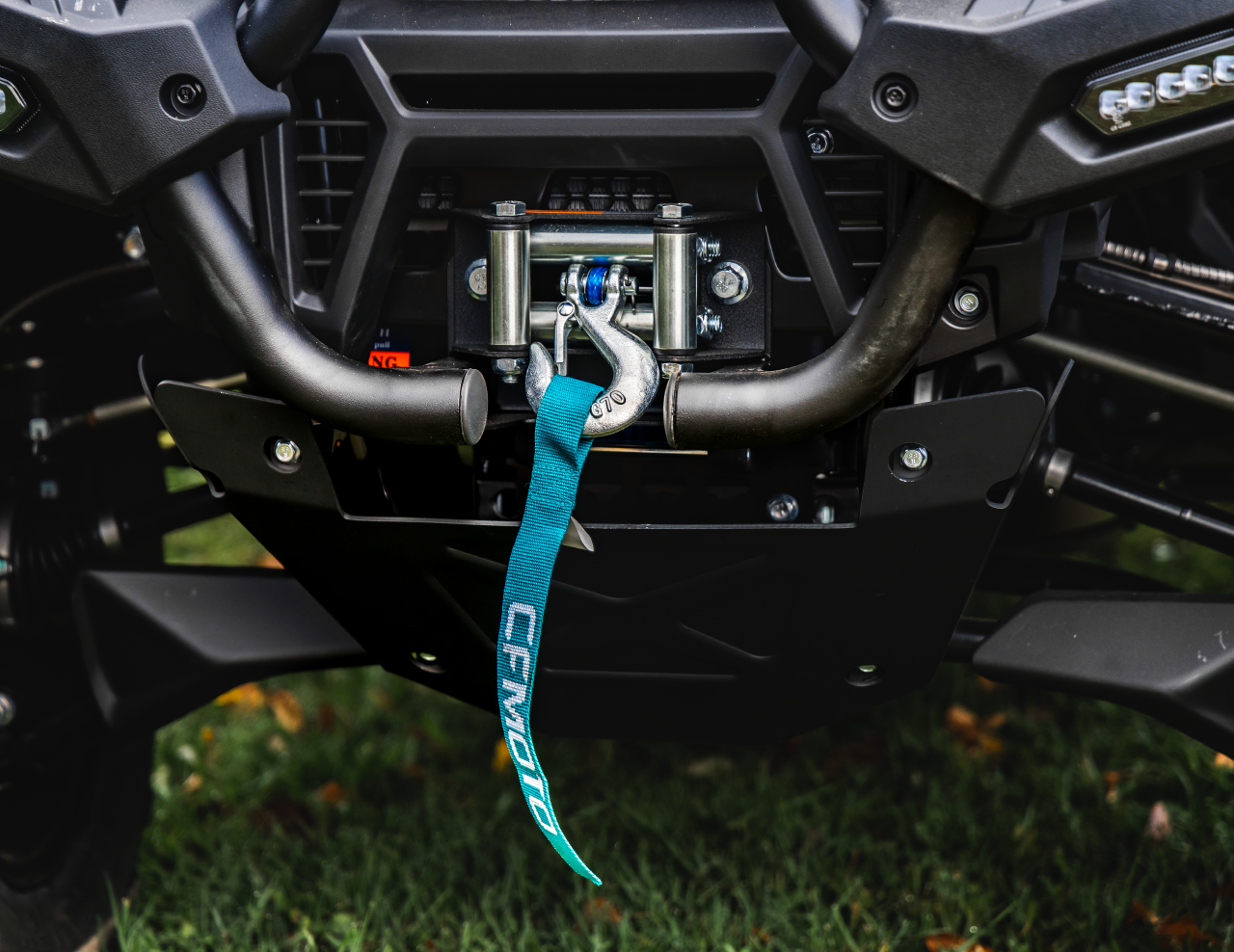

  • 2500 lbs winch

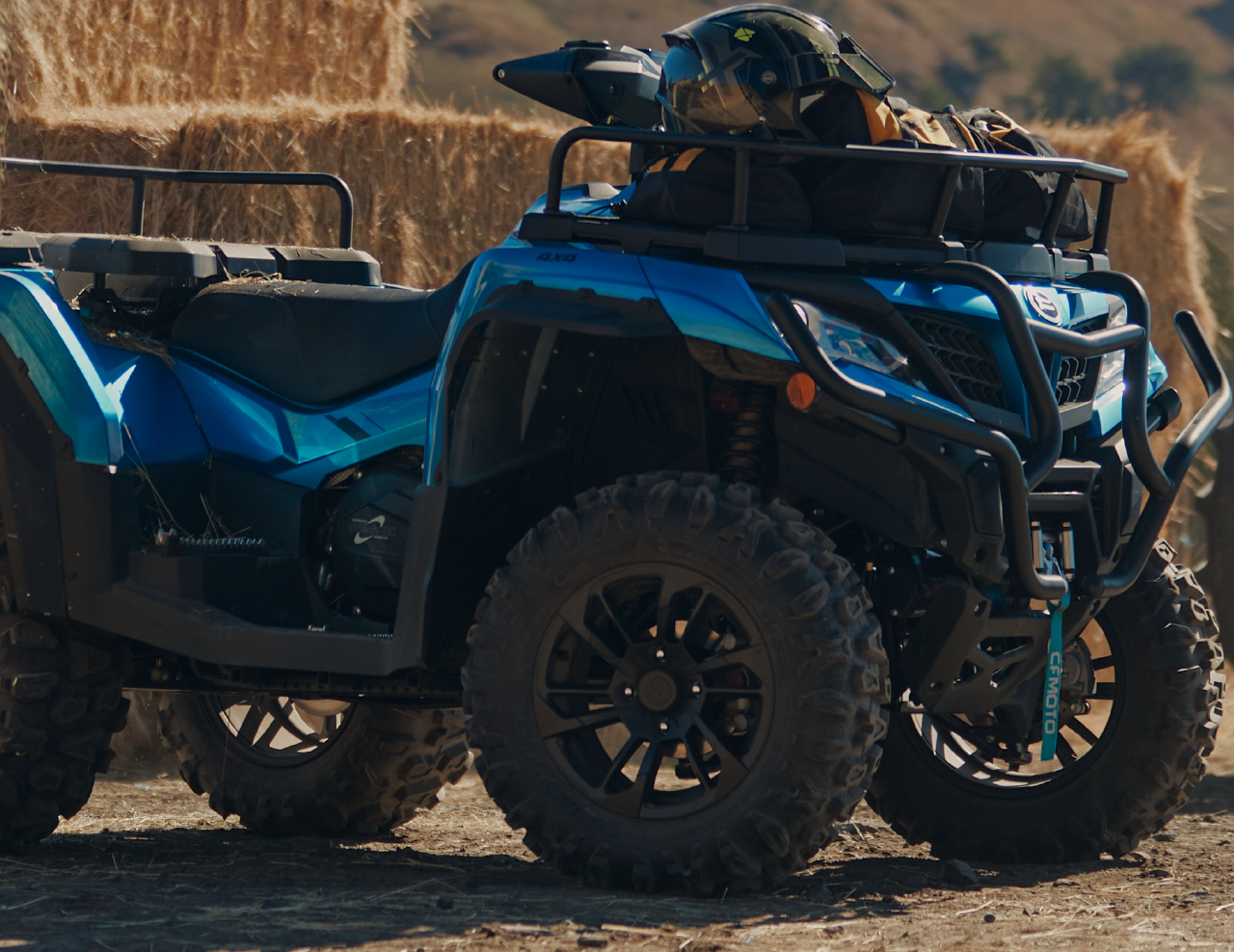

  • 14″  aluminium alloy wheels
  • Digital display dashboard with full instrumentation
  • 12V and USB 18W fast charge
  • LED headlight with integrated turn signals
  • EASY protection plan available

DOWNLOAD THE SPECS SHEET

DOWNLOAD THE OWNER MANUAL (BILINGUAL)

Specifications
  1. Engine
    • Type: V-Twin cylinder, 4-strokes, 8-valves
    • Displacement: 800 cc
    • Bore & Stroke: 91 x 61,5 mm (3.6 x 2.4 in)
    • Compression: 10.3: 1
    • Engine management: Fuel injected engine
    • Cooling system: Liquid
    • Starting: Electric
    • Battery: 30 Amp
  2. Size / Weight
    • Length x width x height: 2310 x 1264 x 1420 mm (94.3 x 49.7 x 56 in)
    • Wheelbase: 1480 mm (58 in)
    • Ground clearance: 285 mm (11 in)
    • Minimum turning radius: 3800 mm (150 in)
    • Fuel tank capacity: 28 L (7.3 gal)
    • Net weight: 472 kg (1040 lbs)
    • Rack capacity (Front/Rear): 20 kg (44 lbs) / 40 kg (88 lbs)
  3. Transmission
    • CV-Tech IBC clutch system: Variable transmission.
    • Gear box: L / H / N / R / P (parking lock shift system)
    • Power train: 2WD / 4WD, electric locking differential
  4. Wheels
    • Front wheels: Aluminum alloy (14 in)
    • Rear wheels: Aluminum alloy (14 in)
    • Front tires: AT 26 x 9-14
    • Rear tires: AT 26 x 11-14
  5. Suspension and steering
    • Front suspension: Double A-arm, independent suspension, gas shock absorber with adjustable rebound/compression
    • Front travel: 180 mm (7 in)
    • Rear suspension: Independent trailing arm rear, fully adjustable gas shocks
    • Rear travel: 190 mm (7.4 in)
    • Steering: Electric Power Steering (EPS)
  6. Brakes
    • Brakes: Four wheel hydraulic disc + rear wheel parking

CFMOTO Warranty

CFMOTO Canada’s standard 5-year warranty includes a 12-month manufacturer limited warranty and a 48-month powertrain limited warranty.

Learn more

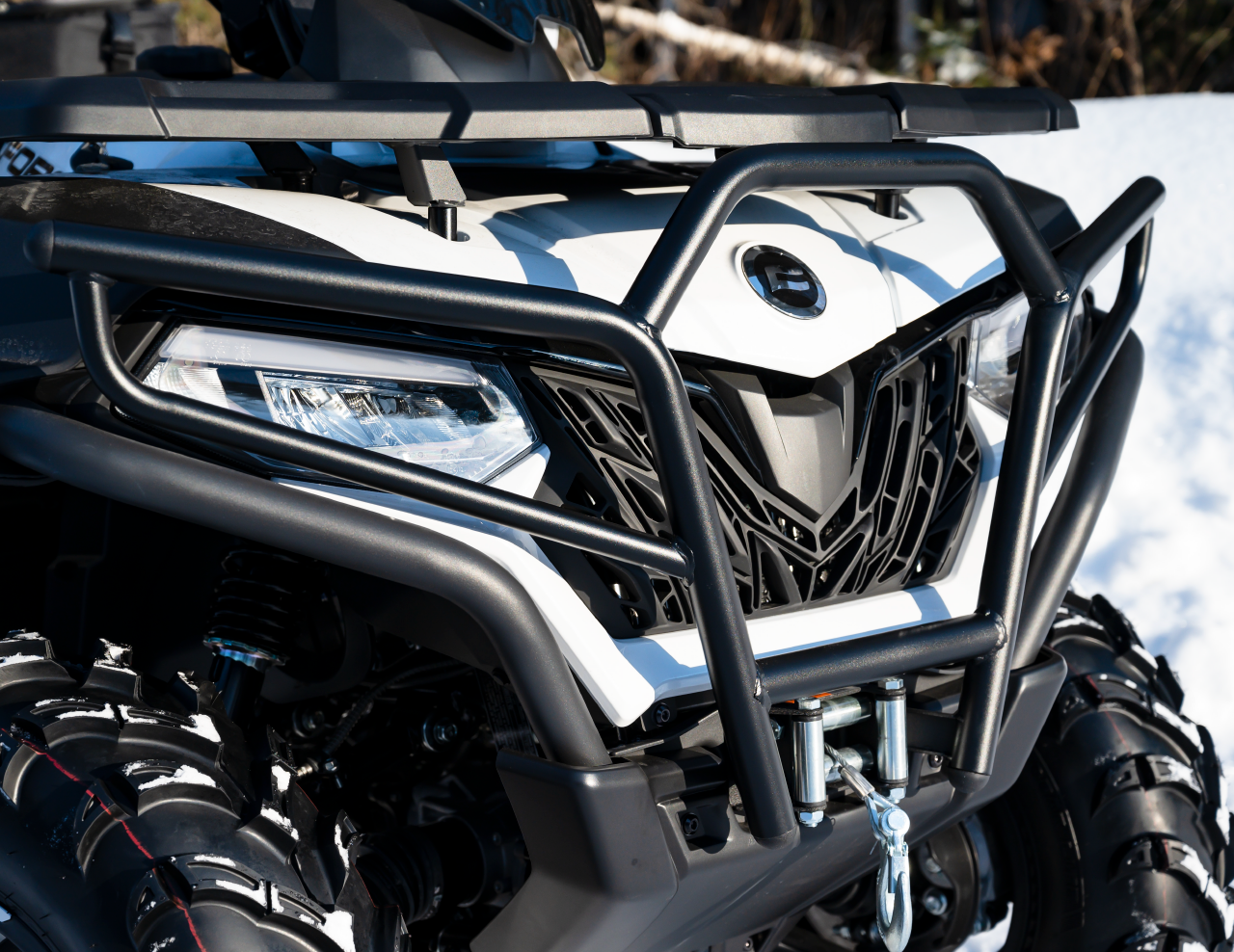

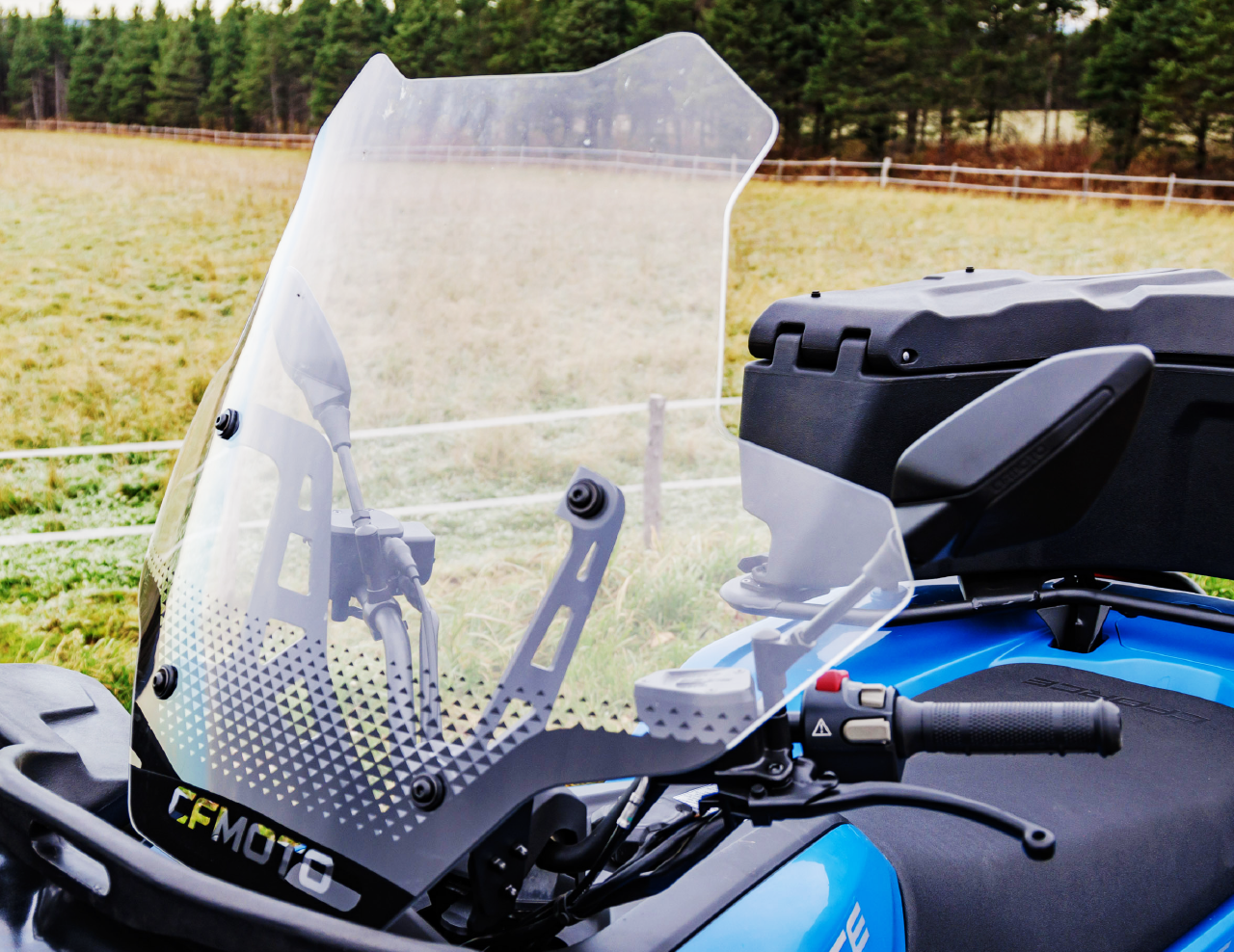

CFMOTO Accessories

Let the CFMOTO range of accessories surprise you. Shop online!

Find your parts.

Get the parts you need for your CFMOTO vehicle and buy it online or at your dealer!

You may also like
Series

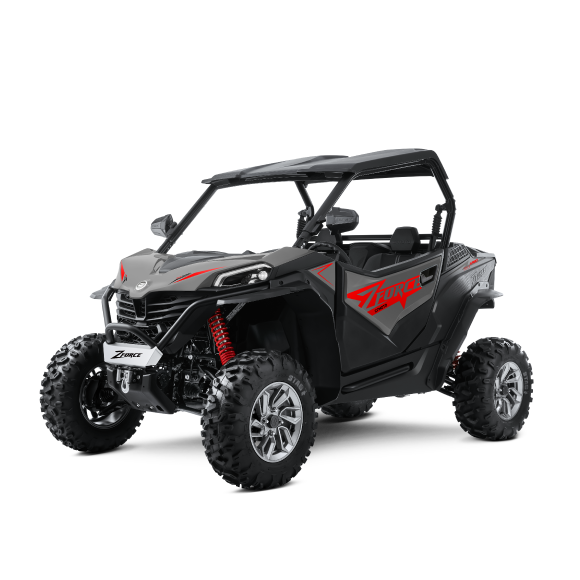

ZFORCE 2023

Live adventure by the ton

Series

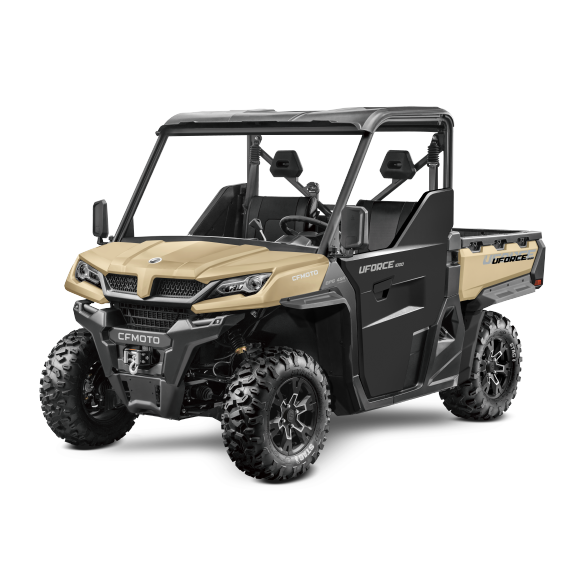

UFORCE 2023
