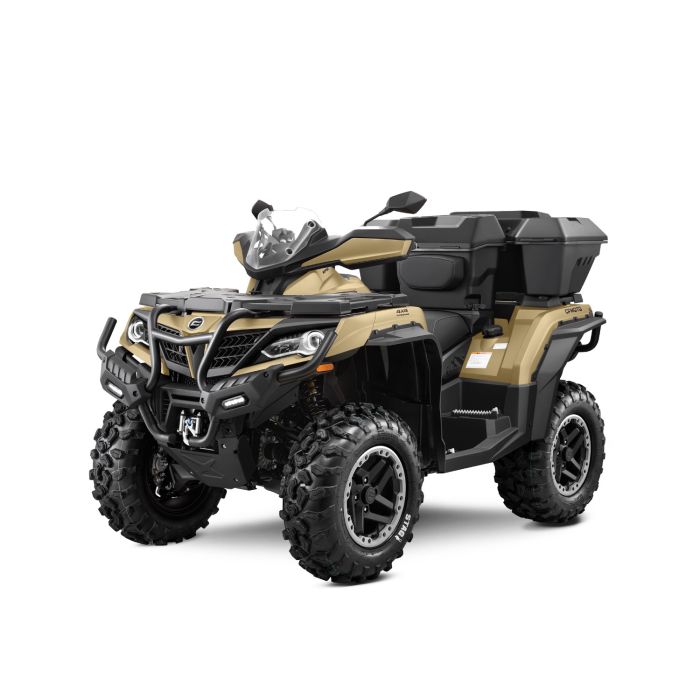

CFORCE 1000 OVERLAND
*The price indicated does not include registration fees, taxes, the cost of accessories and their installation. Preparation fee may vary per dealer. Photos for illustrative purposes only, accessories not included. Specifications can change.








Specifications
Engine
- Type: 4 strokes, 8 valves, V-Twin cylinder
- Displacement: 963 cc
- Max power: 79 hp / 7000 rpm
- Max torque: 52 lb-ft / 6500 rpm
- Bore & Stroke: 91 x 74 mm (3.6 x 2.9 in)
- Compression: 10.6:1
- Engine management: Fuel injected engine
- Cooling system: Liquid
- Starting: Electric
- Battery: 30 Amp
Size / weight
- Length x Width x Height: 2310 x 1264 x 1420 mm (94.3 x 49.7 x 56 in)
- Wheelbase: 1480 mm (58.2 in)
- Ground clearance: 285 mm (11 in)
- Minimum turning radius: 3800 mm (149.6 in)
- Fuel tank capacity : 28 L (7,3 gal)
- Rack capacity: Front 20 kg (44 lbs), Rear 40 kg (88 lbs)
Transmission
- Clutch: CV-Tech IBC clutch system: CV-Tech IBC clutch system variable
- Gear box: L / H / N / R / P (parking lock shift system)
- Power train: 2WD / 4WD, electric locking differential
Wheels
- Front wheels: Aluminum alloy (14 in)
- Rear wheels: Aluminum alloy (14 in)
- Front tires: 27 x 9-14
- Rear tires: 27 x 11-14
Suspension and steering
- Front Suspension: Double A-arm, independent suspension, gas shock absorber with adjustable rebound/compression
- Front travel: 180 mm (7 in)
- Rear suspension: Independent trailing arm rear, fully adjustable gas shocks
- Rear travel: 190 mm (7.5 in)
- Steering: Electric Power Steering (EPS)
Brakes
- Brakes: Four wheel hydraulic disc + rear wheel parking
Electronics
- Dashboard: 7" TFT Display
- Seat: Heated driver seat
- Lights: LED headlight with integrated turn signals
Protection plan
- Protection Plan: EASY protection plan available

- 963cc fuel-injected engine
- Hydraulic Shock Absorber with adjustable rebound/compression and spring preload
- CVTech-IBC Clutch System
- Electronic Power Steering (EPS)
- Removable rear cargo box, storage capacity 105L
- HDPE skid plate assembly for the underside of the vehicle
- Front and rear bumpers
- 3,500lb winch
- Hitch specification: 500kg
- Aluminum winch armor
- Windshield with integrated handguards
- 14-inch Beadlock aluminum wheels
- LED lights
- Trailer hitch
- Easy protection plan available

- 14-inch rims: $1,800
- Skid Plate for the underside of vehicle: $1,050
- 3,500lb winch: $1,000
- Safety and convenience package: $750
- Removable rear cargo box, storage capacity (105L): $600
- Windshield with integrated handguards: $300
- Aluminum winch armor: $100
Why the new CFORCE 1000 OVERLAND 2024
In off-road vehicles, the CFORCE 1000 stands out as the reigning champion, boasting unrivalled power within the CFORCE family. Its aesthetics, functionality and performance make it a must-have.
Personalize your ride
Create the vehicle that perfectly suits your needs and lifestyle. Whether it is an extra layer of protection, winter equipment or storage, you will find everything you need through our wide selection of accessories.





The best warranty in the industry, the standard CFMOTO Canada 5-year warranty includes 12 months of limited manufacturer’s warranty and 48 months of limited powertrain warranty.
For complete protection without deductible and unlimited mileage, choose the EASY protection plan and explore all the benefits that await you.
